FreeVR: Telnet/Socket Interface Manual

FreeVR: Telnet/Socket Interface Manual

February 29, 2024 for FreeVR Version 0.7e
Written by Bill Sherman

Introduction

This guide describes the use of the telnet/socket communications interface to FreeVR applications. As such it can be considered a supplement to the VR System Administration Guide. However, use of the telnet communications system may also come in useful during library or application development, or even during normal application usage. Using this interface, it is possible to type/send commands to a running FreeVR application either to inquire about the current state of the system, or even to make certain modifications to the system while an application is running.

There are two primary means by which one would typically interface with the running system: a telnet connection, or a GUI-based socket program. Both forms of interface are currently available, but both require that the system be configured such that a special FreeVR "telnet" process be configured to run when an application is started. Thus, we first describe how to configure a system to include a telnet process.

The configuration section is followed by the GUI-interface section, and then the Text-interface section. The GUI interface is designed to be easy to use, allowing the viewing and modifying of a subset of the library parameters. The text interface is far more complete, and is often more suitable when attempting to debug the system configuration or bugs in the library itself. For most users, the GUI should be sufficient.

In addition to this web page documentation, there is a telnet.7fv manpage available as part of the FreeVR distribution.

Configuring a Telnet/Socket Process

In order to make use of the telnet/socket command connection it will first be necessary to add a "telnet" process to the operating configuration. The default configuration does not include a "telnet" process because of the open nature of the socket communication. While there is no function that would provide a Trojan horse opportunity to a second party that might connect with someone's running application, it would generally still be an undesirable situation — unless they were helping to debug an application.

Although not part of the default system, there is a "default-telnet" process already defined in the built-in configuration. Thus, to include a telnet process into your configuration it is only necessary to add the existing, default, definition to the system in use. Typically this configuration statement would go in the user's personal configuration file (~/.freevrrc). Because the $system variable contains the most recently set system to use, and the += operator allows one to append to objects and options, the following will work in most situations:

	system $system += {
		procs += "default-telnet";
	}
(Whitespace is ignored, so that could be done on one line.)

The above is sufficient for making sure the telnet process will be available for communication. However, it is also possible to configure the telnet process to your personal tastes. As the telnet process is a FreeVR system process, it has the same basic options as the FreeVR input and visual rendering processes. There are of course, a handful of differences.

To define a telnet process, set the process type to telnet. There are four arguments available for the args fields of the definition: "port", "portrange", "prompt", and "password". The "port" argument is set to the socket port with which you wish to connect via the telnet or other program, or this may be the lower-bound of a range of ports. If the value of "portrange" is zero (or less), then the telnet process will only use the "port" port for the listening socket. In some instances, the desired port will be unavailable, which is where the "portrange" argument comes into play. If there is no range, and the port is busy, then the telnet process will continue to attempt opening the given port, pausing 5 seconds between attempts. If the value of "portrange" is positive, then the telnet process will increment the value of the port it attempts to use by one, and continue incrementing when it finds a busy port, until it gets to the port value that is the sum of "port" and "portrange".

The "prompt" argument allows you to set what will be sent back over the socket to indicate the process is ready to accept a command. By default the prompt is set to "FreeVR>". The final argument, "password" is used to set a password that must be entered before the telnet process will accept commands over the socket port. Currently, this password is not encrypted in any way, so if it is stored in one's configuration file, and other's have access to read the file, then they will know the password. Of course, it is possible to use an environment variable to set the password, which would keep it a little more secret (unless the variable itself is set in a readable .cshrc file).

Here is an example definition for a telnet process:

	process "mytelnetproc" = {
		type = telnet;
		printcolor = $ANSI_GREEN;
		args = "port = 3000; portrange = 1;";	# Listen on port 3000 or 3001
		args += "password = itsme; prompt = YO>;";
	}

The GUI Commands

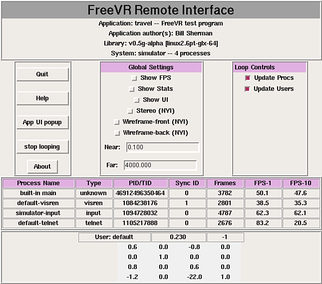

The FreeVR Remote Interface program is a Tcl/Tk script that uses the socket communications protocol to query and set values of a running FreeVR application. The image above reflects the interface as of FreeVR version 0.7e. Some of the features are still under development, and others still in the planning stage.

To run the program, you need to make sure there is a "telnet" process in the current configuration, then run the FreeVR application, and then run the script called fvri.tcl which can be found in the bin directory of the FreeVR distribution.

	% fvri.tcl
(Presently there are no arguments, it assumes port 3000.)

The top section of the display lists some information about the application, including the library it was compiled with, and the system that is currently running. The first two lines, with the application name and authors gets its information from strings that can be optionally set by the application authors. If no information is set within the program, then no information will be available, thus all FreeVR application programmers are strongly encouraged to supply these pieces of information. The next line down gets its information from the library itself. Information about the version of the library, and how it was compiled are directly incorporated within the library file. And the bottom line is based on the current configuration within which the application is running.

The middle section of the display contains all the controls available through this interface. On the left side are some buttons for gross system commands or popup information. NOTE: there probably is no need to use the "stop looping" button, particularly since no "restart looping" option has yet been added. The "App UI popup" button brings up a window that echoes the user interface information that, like the name and authors information, relies on character strings supplied by the application authors within the program itself.

The middle section (of the middle section) has some global settings such as toggling on and off the display of the FPS (Frames per second) information on all of the screens, or the execution statistics, or the user-interface information. Each of these features can alternately be toggled on a screen by screen basis through keys on the numeric keypad. After that are three features that will be implemented in the very near future — ie. before the release edition of version 0.5g. And then the bottom two both report the current near and far clipping planes, and also allow the user to alter these values.

On the right side of the control pane, are currently two toggle buttons that control the update of the information in the bottom portion of the overall window. For each feature that is enabled, the data of the running application will be continually updated in that bottom display. The current choices are information about all the processes, which is often helpful to determine if there is a problem with one of the processes, and also a report on the tracked user of the system, with data about their inter-ocular distance setting (IOD), and their current travel matrix.

More options are planned, plus some error checking to make sure the socket is available when the script is run. Desires for additional features will also be considered.


Using Telnet

The "telnet" command on Unix and other operating systems provides a simple text interface through which one can send and receive (typically) ASCII information over an IP socket port. A server or some other program must already be listening for a socket connection request before telnet will establish the connection. Therefore, in this case the FreeVR application must be running, and be configured with a "telnet" process type.

To connect with a FreeVR application, one usually types something like:

	% telnet localhost 3000
	FreeVR>echo $version
	v0.7e
	FreeVR>
In this case, we are greeted with the "FreeVR>" prompt after connecting with the same machine on which the telnet command is executed, and the FreeVR telnet process is listening on port 3000. [In this case we type echo $version and FreeVR responds.] We can, of course, very easily connect with the application from any other machine on the Internet, or same intranet. And the port is whatever is specified in the configuration. The telnet process will typically report to the shell window from which the application was run the name and port number to use to make a connection. (I.e. look at the FreeVR application output for the port number.)

There is one further important note when running on a Linux machine: The telnet process blocks while waiting for user interface, so if there is an active telnet connection when the program quits, the telnet process will wait until something is input. In this case, simply hitting the "return" key should be sufficient.

Using Netcat

Similar to telnet is the netcat tool available on most UNIX-like operating systems. As the name implies, it is a networked variant of the common "cat" utility. Specifically, it allows blocks of text to be sent to a network port. [NOTE: while the tool is named "netcat", the actual command is usually just "nc", or sometimes "ncat".]

So a command (or sequence of commands separated by a semicolon) can be sent, and the response echoed to a terminal or stored in a shell variable. The above echo would look like:

	% echo 'echo $version' | nc localhost 3000
	v0.7e
	%
(NOTE: the single-quote is needed here because of the use of the dollar-sign that indicates we want the value of a variable — otherwise the dollar will be likely interpreted by the shell instead (depending on the shell).]

(NOTE Also: the first echo is the shell echo command, and the second echo is the FreeVR echo command.)

Should the need arise, it's also possible to use the netcat tool on a telnet process protected by a password (e.g. itsme):

	% echo -e 'itsme\0echo $version' | nc localhost 3000
	v0.7e
	%
(NOTE: the "-e" option tells the shell echo command to process backslash escape sequences. And we need to use the "\0" escape sequence to terminate the password string, after which the FreeVR telnet process will start interpreting commands.]

The Text-Interface Commands

There are two major groupings of commands that can be sent to a FreeVR application, plus a collection of miscellaneous commands. The first major grouping are the print commands, for making inquiries regarding the running application. The second major grouping are the set commands for setting the values of parts of the running system. Of the miscellaneous commands, the help command is the one of primary importance.

The Basic Commands

There are a handful or two of general commands available to the FreeVR user. One command to get the overall health of the system (status). Three deal with termination of the connection (close), the telnet process (quit) and the entire system (term). Three commands deal with setting, unsetting and viewing variables: setenv, unsetenv, and echo. Five commands are used to control the verbosity to which information queries are responded: verbose, brief, one_line, machine, and fileformat.

But first, a couple of caveats. The unsetenv command does not work on all operating systems (such as IRIX). Not all the file formats are completely implemented (but they will default to an alternate option rather than print nothing). And lastly, the term command used to be a bit of a cheat, whereby what it actually did was act as an alias for the command set input 2-way[0] 1 (ie. emulating the pressing of the Escape key, which relies on the fact that the de facto standard for terminating FreeVR applications is by pressing the first (0th) button (usually the 'Esc' key). However, starting with FreeVR version 0.7e, the term command actually sets the request-for-termination flag, which is then handled in the normal course of things, by the vrFrame() function.

Here is the list of all the upper tier commands (including "print" and "set"):

  • help — this list of commands
  • status — an overview of the health of the system
  • nudge — a special form of "help" that lists all the commands to nudge (tweak) the configuration

  • close — close the connection
  • quit — quit the telnet process
  • term — terminate FreeVR application

  • echo <string> — echo the string back to the output, with variable substitutions
  • setenv <envvar> <value> — set the value of an environment variable
  • unsetenv <envvar> — unset the environment variable

  • verbose — set verbose printing mode
  • brief — set brief printing mode
  • one_line — set one_line printing mode
  • machine — set print style to machine mode
  • fileformat — set the print style to file_format mode

  • print|p <query> — print some info about the FreeVR app (see section below)
  • set|s <request> — set the value of part of the system (see section below)
  • lock <lock-command> — manipulate an internal lock (see section below)
  • barrier <barrier-command> — manipulate an internal barrier (see section below)

The History Commands

Like many command-line shells, there is a "history" mechanism that keeps track of the commands that have been entered into the telnet/socket interface.

There are basically two sides to the history mechanism, one is to be able to print past commands, and the syntax for that is:

  • history [<num>] — list the past <num> number of commands, or all of them if <num> is omitted

The other half of the history mechanism is to re-execute past commands. There are specific sub-options to: repeat-last-command, repeat the Nth command, and repeat the Nth-ago command. Syntax is similar to most UNIX-style shells:

  • !! | !<num> — re-execute the last command (!!), or command <num> if <num> is positive, or the Nth-ago command if negative

The Print Commands

Specifying a print action begins with either the word print or just the letter p followed by one of the available features of the system that can be requested. As with the general list of commands, there is also an option to return the list of available printable options using the print help command.

Most of the queries that can be made via the print command pertain to information about the current state of objects that make up the actively running system. There is also a command to print the entire configuration setup for the current system, and there is also a command for printing any object from the configuration files, regardless of whether they are part of the active system. [NOTE: recall that a FreeVR configuration can specify multiple hardware setups (aka "systems"), allowing the user to specify a system with a particular subset of defined objects at runtime. The objects used to construct those, alternate, systems can also be queried, but of course there will be no information about their runtime status.]

Except for the "system" object, a running FreeVR application may have multiple active objects of any given type. In fact, there will nearly always be at least three processes, and there will often by multiple windows for rendering, and frequently there will be multiple input devices as well. Thus, except for the "system", it is possible to inquire about a particular object of a given type, or a summary of all the objects of that type.

The special "object" query is used to print information about configuration objects that may or may not be part of the running system. Because objects of different types can have the same name, it is required that the inquiry specify the object type. For example, there may be a window named default and an input named default.

There are also two special forms of the object query. The first special form is to use the word list as the name of the object. Instead of looking for an object with the name "list", FreeVR will return a list of the given type of object. The second special query is to specify the object type as "address" and give a numeric value as the name. In this case, FreeVR will respond with information of the configuration object at the address specified by that number. Many of the query printouts give object addresses, sometimes without the corresponding name (as in a next pointer in a linked list). Thus using the address is the best way to find out what object lies at the other end of the pointer.

Here is the list of all the available queries:

  • help — a list of what can be printed (ie. this list)
  • context — print the context structure
  • shmem — information about the shared memory system
  • config — print the configuration structure of the running system
  • system — print the system structure
  • ui — print the information that the on-screen help shows
  • settings — print the system settings values
  • defaults — the system default settings structure (of the running system)
  • near — the near clipping plane value
  • far — the far clipping plane value
  • procs — print a summary of all the processes
  • proc[<N>] — print the structure of the Nth process
  • inputs — print a list of the available inputs
  • input <name> — print info about a particular input
  • inputdevices — print info about all inputs devices
  • inputdevice[<N>] — print info about the Nth input device
  • windows — print a summary of all the windows
  • window[<N>] — print info about the Nth particular window
  • eyelists — print info about all eyelists
  • eyelist[<N>] — print info about the Nth eyelist
  • eyes — print info about the eyes of the system
  • eye[<N>] — print info about the Nth eye
  • users — print info about all the active users
  • user[<N>] — print info about all the Nth user

  • object|o <type> list — list all <type> config objects
  • object|o <type> <name> — print info about any config object
  • object|o <address|a> <memory address> — print info about any config object (running or not)

The Set Commands

The "set" commands allow the operator to affect the running FreeVR application. The values that can be set are a limited selection of fields of each of the configuration objects, plus a handful of global/context values (such as the overall debugging printout level). As with the printcommands, a set command begins with either the word set or the letter s followed by the object's field to set, and the field's new value. There is once again a help argument that can be given to receive a list of settable features.

The scope of what can be set is of course much smaller than what can be queried. Basically, certain fields of the active window, user, and proc configuration objects can be set, along with any specific input (such as a button or a 6dof-sensor). Also, the global debug (including both the "level" and the "thistoo" values) can be set.

There are also several settings that allow one to "nudge" an object in the running system to tweak the configuration. If this helps improve the configuration, then those numbers can be applied to the permanent configuration (by hand), or the current configuration can be output in the syntax of the FreeVR configuration file using the "fileformat" and "print config commands.

Here is the list of all the available settables:

  • help — print this message (a list of possible setting requests)
  • input <obj> <value> — set the value of an input:
    • input <6-sensor> <id> — set the transformation to identity
    • input <6-sensor> loc <x> <y> <z> — set the location ('*' is no-change)
    • input <6-sensor> move <values> — set movement parameters for 6-sensor
    • input <6-sensor> nudger2eA|nra <x-rot> <y-rot> <z-rot> — nudge coordinate angles of an input
    • input <6-sensor> nudger2eT|nrt <x> <y> <z> — nudge coordinate location (translation) of an input
  • inputdevice[<num>]<value> — set the value of an input-device:
    • nudget2rwA|nta <x-rot> <y-rot> <z-rot> — nudge coordinate angles of an input-device
    • nudget2rwT|ntt <x> <y> <z> — nudge coordinate location (translation) of an input-device
  • debuglevel|dl <value> — set the global debug level.
  • debugthistoo|dtt <value> — set the global debug-this-too.
  • debuglevel|dl[<N>] <value> — set process N's debug level
  • debugthistoo|dtt[<N>] <value> — set process N's debug-this-too.
  • window[<N>] fps {0,1} — turn off/on a window's fps display
  • window[<N>] fps_loc <v1>,<v2> — relocate a window's fps display
  • window[<N>] fps_color <v1>,<v2>,<v3> — set color of a window's fps display
  • window[<N>] sim — move the view of a simulator window
  • window[<N>] frame {0,1} — turn off/on rendering a window's frame outline in simulator view
  • window[<N>] nudgex <value> — shift the window by <value> along the X-axis
  • window[<N>] nudgey <value> — shift the window by <value> along the Y-axis
  • window[<N>] nudgez <value> — shift the window by <value> along the Z-axis
  • object window[<name>] <any window command> — affect a command on any window in the configuration
  • user[<N>] iod <v1> — set the iod of a user
  • user[<N>] color <v1>,<v2>,<v3> — set the color of a user
  • proc[<N>] end <v1> — set the end_proc flag of a process
  • proc[<N>] done <v1> — set the proc_done flag of a process

Note that setting the end_proc of a process to 1 tells that process to end itself, and except for the main process, whatever process that is will then terminate. The result of this will be a window that goes away, an input that stops inputting, or a telnet process that closes its connection and stops responding. Unfortunately, at the moment, there is no way to then resurrect that process or even start a different new process from scratch. This is on the list of things to do however, so one day this will be possible.

System Variables

There are several "variables" that relate to the operation of the system or convey information about a running application that can be referenced via the telnet/socket system.

These are the available variables. Variable parsing is shared with the configuration parser, so some of these variables make more sense in that contest:

  • machine (or hostname)— the name of the computer on which the application is running
  • version — the version of FreeVR an application was compiled with (e.g. "v0.6g")
  • fullversion — a longer version string the application was compiled with (e.g. "FreeVR Version 0.6g")
  • versionnum — a numeric representation of the FreeVR version for more flexible conditionals (e.g. "607")
  • name — the name of the application, as assigned by the application [NOTE: this will not be set prior to reading the configuration file.]
  • author — the name of the application's author, as assigned by the application [NOTE: this will not be set prior to reading the configuration file.]
  • appstatus — an unconstrained string that an application can use to indicate a status [NOTE: this will not be set prior to reading the configuration file.]
  • freevrhomedir — the name of the directory where one can find the FreeVR system files
  • arch (or binaryformat) — the architecture of the compiled application (useful for making sure DSO's match the application)
  • system — the name of the currently set system that will be run (ie. the value of the last usesystem command).
  • def_visrenmode — the value of the currently set default visual rendering mode.
  • startup_error — error code from any problems found in the configuration
  • memsize — the size of the allocated shared memory space
  • sysstatus — the value of the FreeVR system status
  • systype — the overarching form-factor of the VR system (e.g. CAVE/stationary, HMD, Wall, Pit, Desktop, etc.)
  • compile — a string with the compilation data of the library
  • compile_options — the "-D" flags set when the FreeVR library was built
  • target — the Makefile "target" used in building the FreeVR library
  • time_immemorial — the beginning time of the running application
  • sim_time / time — time since the application began (time since "time_immemorial")
  • wall_time — the current time as reported by the system's operating system
  • wall_time_elapsed — the amount of time (in seconds) since the application began
  • debuglevel — the current value at (and below) which debugging output will be provided
  • debugthistoo — a single additional debug level that will be reported
  • debug:<levelname> — the value of a given debug level (e.g. $debug:common)
  • win_style — the type of windowing interface (e.g. "GLX")
  • gfx_style — the type of graphics renderer (e.g. "OpenGL")
  • sem_style — the type of semaphores used by this FreeVR build (e.g. "SYSVIPC")
  • shm_style — the type of shared-memory used by this FreeVR build (e.g. "SVR4MMAP")
  • sock_style — the type of socket API used by this FreeVR build (e.g. "BSD")
  • mp_style — the type of multi-processing API used by this FreeVR build (e.g. "FORK")

The Lock and Barrier Commands

The lock and barrier commands allow the operator to alter the state of existing locks and barriers in the system, and to create new locks and barriers for the purpose of testing. Locks can be set and released as reader or writer locks, and barriers can be called, to wait until the required number of processes have arrived at the barrier.

The purpose of these commands is almost exclusively for debugging — both for debugging the FreeVR library itself, and also for debugging user applications which make use of locks and/or barriers.

Lock commands are specified by beginning the command line with the word lock or the letter l. Similarly, barrier commands use the word barrier or the letter b. These inputs are then followed by the specific operation (on the same line).

Here is the list of all the available lock operations:

  • help — print a message listing all the lock commands
  • create — create a new lock, printing its address
  • print|p <lock> — print the state of the lock
  • printall|pa <lock> — print the state of all the locks
  • trace|t <lock> <0 | 1> — set the lock's tracing flag
  • setwrite|sw <lock> — wait for and set the write state for the lock
  • relwrite|rw|uw <lock> — release the write state for the lock
  • setread|sr <lock> — wait for and set the write state for the lock
  • relread|rr|ur <lock> — release the write state for the lock

Here is the list of all the available barrier operations:

  • help — print a message listing all the barrier commands
  • create — create a new barrier, printing its address
  • print|p <barrier> — print the state of the barrier
  • printall|pa <barrier> — print the state of all the barriers
  • sync <barrier> — wait for all members to be at the barrier
  • relonce <barrier> — prematurely release the barrier
  • increment <barrier> — add one member to the barrier
  • decrement <barrier> — subtract one member from the barrier













© Copyright William R. Sherman, 2024.
